M-tec M200 240v Domestic Edition and 240v EZE Genset

Product Attributes

Description

M-tec M200 240v Domestic Edition and 240v EZE Genset

Small, Compact, Powerful | Made in Germany

Technical information and data below

Manufactured in Germany, the M-tec M200 240v Domestic Edition machine has been designed using the best of their engineers working jointly with Andrew Hill from Plasterers 1 Stop Shop. Based on their expert insights and identifying priorities and productivity the UK specification was created, known as the ‘AJH Design’.  EZE Genset manufactured in our HQ in Cheltenham.

Hands on training provided with all machine purchases.

Technical characteristics

Length 1060 mm

Width 590 mm

Height 1170 mm

Total Weight less than 115 kg

Output 18 l/min

* supply distance up to 25 m

Pump motor 2.2kW

Water pump 240 V

*Output and supply distance depends on the plastering mix.

Technical data

Compressor MKG 125 1 kW appr. 125l/min, 3.5 bar

Power supply 230 V 50 Hz 1 ph

Fuse 16 A

Cable 3 x 2.5 mm

Water connection 3/4″ water hose with GEKA-coupling minimum requested water pressure 1.8 bar while machine is running

Dimension appr. 1168 x 588 x 1055 mm

Mixing pump output max ca. 18 l/min

Conveying height up to 15 m

Conveying pressure up to 20 bar

Conveying yield, distance and height all depend on the material to be conveyed and the statorand rotor used

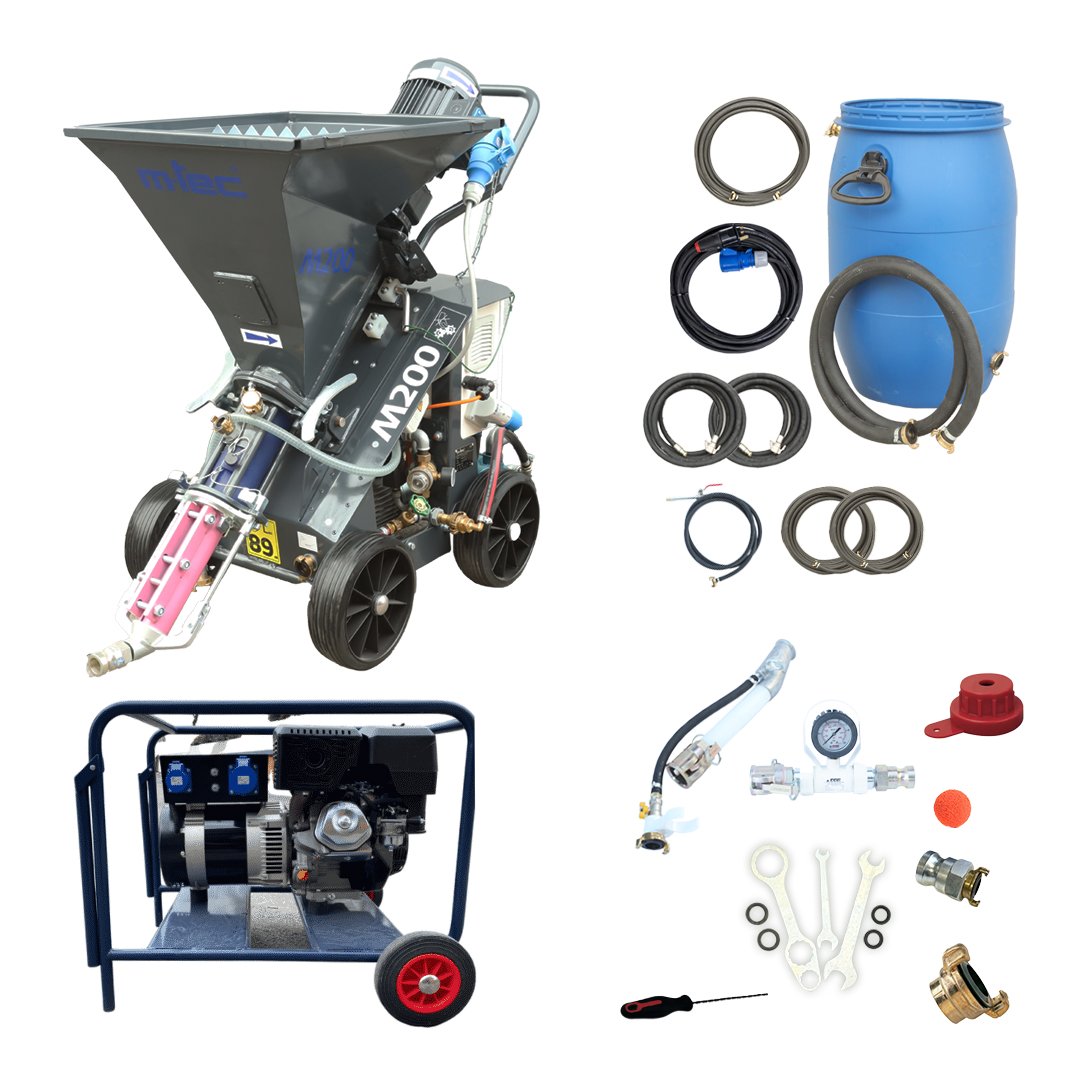

Delivery Includes

240v EZE Genset

Mixing pump incl. compressor with automatic switch-off

1 integrated water pump

1 Stator incl. Rotor rozza

1 Pump end piece F25

1 Reducing piece M25/GEKA

1 Hose pressure manometer NW25 with V25/M25

1 Mortar hose DN 25, 10m long

1 Mortar hose DN 25, 5m long

1 Air hose 3/8, 16,5m long, GEKA/GEKA

1 Spray gun M25, 200mm straight

1 Plastic tool box with items

1 Power supply cable with Schuko plug, 25m long

Selection of tools

With over 15 years of experience in machine plastering, we can offer expert support, service, repair and training for all makes and models of plastering machines. Each member of our team has a solid background in the construction industry, and extensive knowledge and experience in all applications, material tolerances and building and construction regulations. No question will go un answered, we are always at the other end of the phone! Speak with us now on the new M-tec m200 240v with genset

Available without 240v EZE Genset, view here
