M-tec M200 240v Domestic Edition
A fully self contained unit with on board compressor and water pump.
All the benefits of the proven 110V, plus more.
This product isn't available to buy online, click below to send an enquiry and a member of our team will be in touch to discuss purchasing this product, or call:
01242 236383
Enquire about M-tec M200 240v Domestic Edition
Enter your name, email and phone below along with an optional message.
"*" indicates required fields
Product Attributes
Brand |
---|
Description
M-tec M200 240v Domestic Edition
This newest edition can be plugged directly into households with no requirement for an external generator or transformer. No power? No problem! We have a machine and generator package available too.
Small, Compact, Powerful | Made in Germany
Technical information and data below
Manufactured in Germany, the M-tec M200 240v Domestic Edition machine has been designed using the best of M-tec engineers working jointly with Andrew Hill from Plasterers 1 Stop Shop. Based on their expert insights and identifying priorities and productivity the UK specification was created, known as the ‘AJH Design’.
Hands on training provided with all machine purchases.
Technical characteristics
Length 1060 mm
Width 590 mm
Height 1170 mm
Total Weight less than 115 kg
Output 18 l/min
* supply distance up to 25 m
Pump motor 2.2kW
Water pump 240 V
*Output and supply distance depends on the plastering mix.
Technical data
Compressor MKG 125 1 kW appr. 125l/min, 3.5 bar
Power supply 230 V 50 Hz 1 ph
Fuse 16 A
Cable 3 x 2.5 mm
Water connection 3/4″ water hose with GEKA-coupling minimum requested water pressure 1.8 bar while machine is running
Dimension appr. 1168 x 588 x 1055 mm
Mixing pump output max ca. 18 l/min
Conveying height up to 15 m
Conveying pressure up to 20 bar
Conveying yield, distance and height all depend on the material to be conveyed and the stator and rotor used

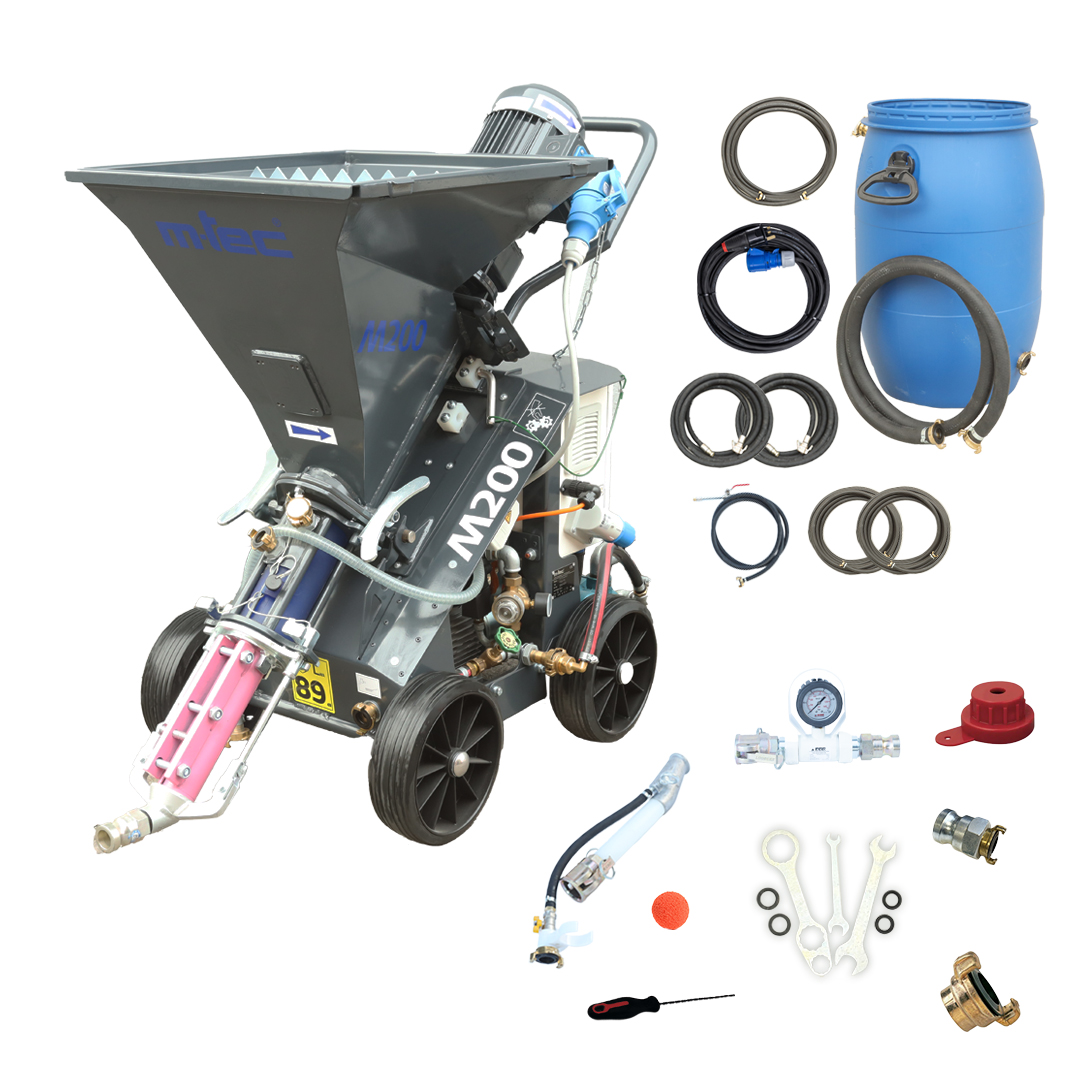

Delivery Includes
Mixing pump incl. compressor with automatic switch-off
1 integrated water pump
1 Stator incl. Rotor rozza
1 Pump end piece F25
1 Reducing piece M25/GEKA
1 Hose pressure manometer NW25 with V25/M25
1 Mortar hose DN 25, 10m long
1 Mortar hose DN 25, 5m long
1 Air hose 3/8, 16,5m long, GEKA/GEKA
1 Spray gun M25, 200mm straight
1 Plastic tool box with items
1 Power supply cable with Schuko plug, 25m long
Selection of tools
With over 15 years of experience in machine plastering, we can offer expert support, service, repair and training for all makes and models of plastering machines. Each member of our team has a solid background in the construction industry, and extensive knowledge and experience in all applications, material tolerances and building and construction regulations. No question will go un answered, we are always at the other end of the phone! Speak with us now on the new M-tec m200 240v domestic edition.
Available with 240v EZE Genset, view here
