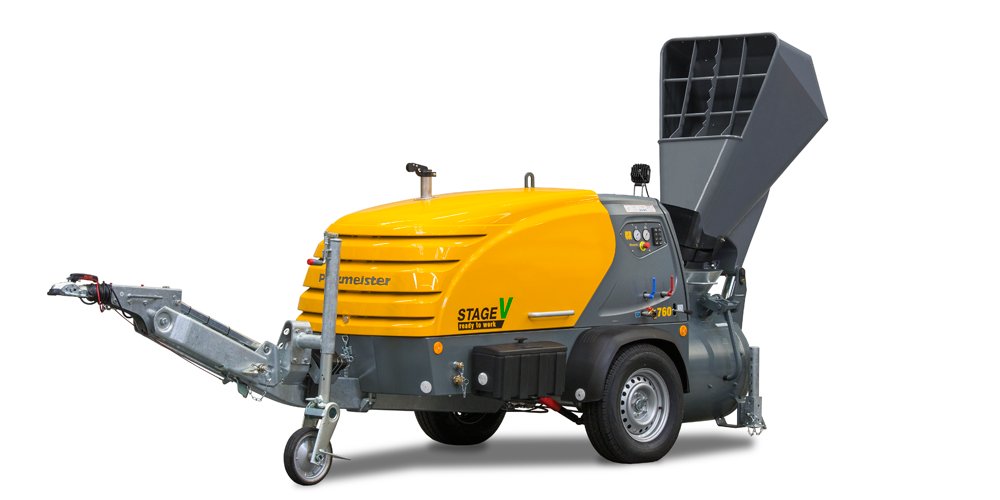

Putzmeister M760 DHB Stage V Green Efficiency

The environmentally friendly and powerful Mixokret M 760 Stage V Green Efficiency floor screed pump has been developed for big tasks. More power with lower fuel consumption, emissions and noise.

This product isn't available to buy online, click below to send an enquiry and a member of our team will be in touch to discuss purchasing this product, or call:

01242 236383

Enquire about Putzmeister M760 DHB Stage V Green Efficiency

Enter your name, email and phone below along with an optional message.

"*" indicates required fields

SKU9151 Category:

Product Attributes



Putzmeister M760 DHB STAGE V Green Efficiency

Diesel with Feeder

Can be used to pump cement screed, calcium sulphate screed (anhydrite), magnesia screed and sand and aggregate.


Key Features

Higher output and more efficient through machine performance management in series

New robust keypad improves usability

Auto-Power-Off – prevents the battery from draining overnight

Optimised maintenance and service features

Large diesel tank with 70 litres volume

Hydraulic mixing unit with overload protection and reverse

User-friendly operation of feeder lever and air taps

Robust design ensures value retention and high resale values

Maximum power – meets all requirements of the current “Stage V” emission category

Made in Germany


Special Features

Includes operating manual, standard accessories, one discharge stand

Lower noise level and diesel consumption

Two-year warranty on engine and compressor


Technical Data

Output 4.8m3/hr

Weight 1840 kg

Length x width x height 5075 x 1480 x 2431 mm

Filling height 400 mm

Mixing vessel 200l

Horizontal reach gross 190 m

Vertical reach 135 m

Delivery pressure 8 bar

Compressor 4.8 m3/min

Engine Diesel, 3-cylinder Deutz with turbocharging

Engine power 44.5 kW

Emission stage Stage V

Diesel tank 70 l

Max. aggregate size 16 mm

Chassis braked


The Mixokret M 760 Stage V Green Efficiency is available in 2 more versions:

M 760 DH Stage V (Basic Version)

M 760 DHBS Stage V (Diesel, feeder and scraper)


With over 15 years of experience in machine plastering, we can offer expert support, service, repair and training for all makes and models of plastering machines. Each member of our team has a solid background in the construction industry, and extensive knowledge and experience in all applications, material tolerances and building and construction regulations. No question will go unanswered, we are always at the other end of the phone!

Enquire now about the Putzmeister M760 DHB Stage V Green Efficiency or view the Putzmeister Range.
