Putzmeister M760 DH Stage V Green Efficiency
View similar products: Putzmeister Screed Machines, Putzmeister Traditional Screed Machines, Traditional Screed Machines
Environment friendly power unit. Developed for large floor screeding projects, Mixokret M 760 Stage V Green Efficiency pump is environment friendly and powerful. Boosts performance for reduced fuel consumption, noise, and emissions.
Enquire below to purchase
Use the form below to enquire about this product, or call: 01242 236383 to speak to one of the team.
Overview

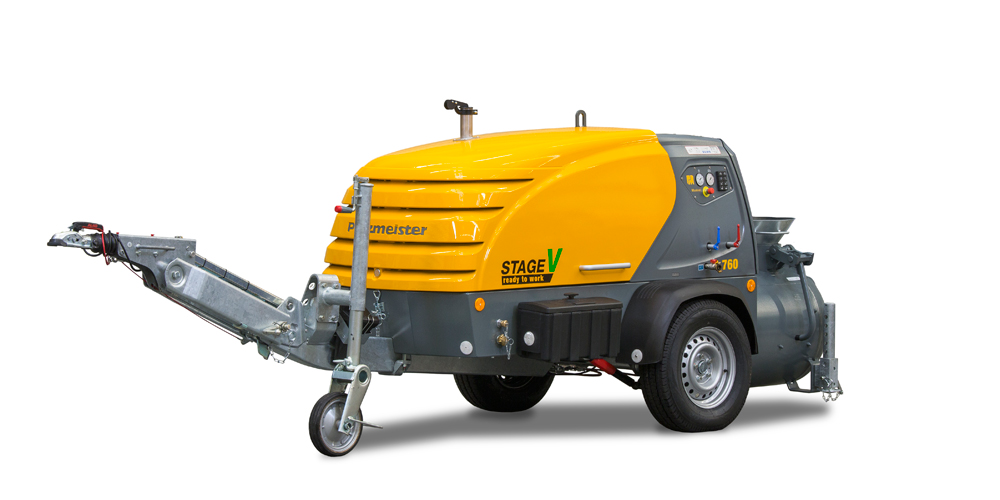

Putzmeister M760 DH Stage V Green Efficiency (Basic Version)
This machine is used for pumping cement screed, calcium sulphate screed (anhydrite), magnesia screed, and sand and aggregate.
Key Features
Higher output and more efficient through machine performance management in series
New robust keypad improves usability
Auto-Power-Off – prevents the battery from draining overnight
Optimised maintenance and service features
Large diesel tank with 70 litres volume
Hydraulic mixing unit with overload protection and reverse
User-friendly operation of feeder lever and air taps
Robust design ensures value retention and high resale values
Maximum power – meets all requirements of the current “Stage V” emission category
Made in Germany
Technical Data
Output 4m3/hr
Weight 1715 kg
Length x width x height 4780 x 1480 x 1520 mm
Filling height 820 mm
Mixing vessel 200l
Horizontal reach gross 190 m
Vertical reach 135 m
Delivery pressure 8 bar
Compressor 4.8 m3/min
Engine Diesel, 3-cylinder Deutz with turbocharging
Engine power 44.5 kW
Emission stage Stage V
Diesel tank 70 l
Max. aggregate size 16 mm
Chassis braked
Special Features
Includes operating manual, standard accessories and one discharge stand
Lower noise level and diesel consumption
Two-year warranty on engine and compressor
The Mixokret M 760 Stage V Green Efficiency is available in 2 more versions:
M 760 DHB Stage V (Diesel and feeder)
M 760 DHBS Stage V (Diesel, feeder and scraper)
View our Putzmeister Range here
Speak with us now on the Putzmeister M760 DH Stage V Green Efficiency
Shop liquid screed machines.
