M-tec M200 110v + EZE Genset

Not to take all the credit, the creation of the M-tec M200 110v + EZE Genset was also based on expert insights and opinions from our customers, identifying their priorities, needs and practical onsite knowledge. It was important for us to listen to what our customers said, to guarantee an innovative development of the new M200.

The principal objectives in this joint design venture was;

Method, ease and practicality of use
Overall effectiveness & performance
Economical concept
Working Volume
Focus on design and practicality
Adaptions have been designed to allow the machine to operate in 110v with maximum output and pumping distance but proving to be a versatile and cost-effective machine.

Quick and easy Rotor & Stator coupling, a specially designed Mixing shaft & chamber.

Output

With an output of up-to 18l/min, the M200 will give the larger machines a run for their money, especially with a pumping distance of 25m

The M200 comes with a built-in 4 way speed control, the M200 has the ability to spray a wide range of products at different speeds including Monocouche Renders to Roughcasting to Thin-coats

There is simply no job too big or too small for this machine – it’s the perfect partner for either the domestic or commercial contractor

Benefits

The M200 package is the most cost effective way to purchase the machine. The package comes complete a full spray kit consisting of 20m Material hose, water hoses and barrel and our EZE Genset.

The precise clear design of the controls and abandonment of redundant switches makes the machine simple to use.

In very little time and with minimal effort, the machine can be disassembled – a huge advantage on the construction site

Technical Data

Standard delivery volume Up to 18l/min**

Conveying distance 25m**

Conveying height 10mm**

Drive motor 1.5kW

Electrical connections 110v 50Hz 1ph

Fuse 32 AMP

Connecting cable 3×2.5mm

Connector 32A 3P 6h

Water supply 3/4 water hose with Geka coupling Water supply

Min water pressure 1.8bar whilst machine in operation

Dimensions 1170 x 590 x 1060mm

Weight Less than 115kg

**Depending on consistency, quality and composition of the material, pump model and – condition, diameter and length of the delivery hose and also the pumping height of the material

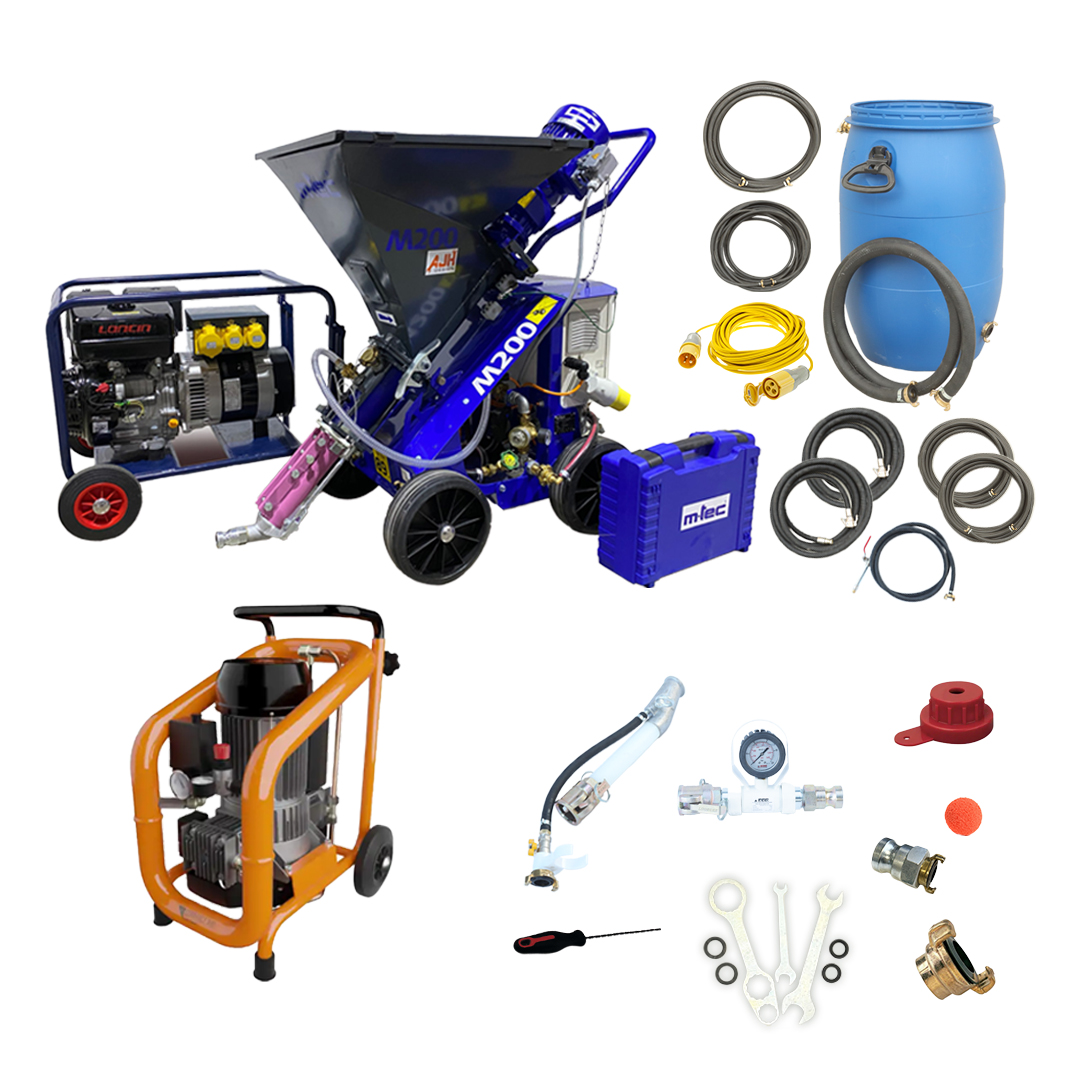

Scope of delivery

Mixing Pump – M200 including:

Air Compressor

20m Rondo hose and Air line – Rondo Hose = 1 x 10m 25mm + 2 x 5m 25mm

Mortar Pressure gauge

Flow meter

Tool kit

20m Water Hose

Small water barrel

Electric cable

Water Pump

Cleaning Coupling

EZE 110v Genset – An exciting powerful new Generator designed and manufactured at our depot in Cheltenham

Specification:

Loncin Engine: 9 HP – Petrol Engine

110v 16Amp Socket;
110v 16AmP Socket
Weight: 65kg
Length: 73cm
Width: 62cm
Height: 59cm

Machine comes as standard with a 2 year warranty on the engine and a 1 year warranty on the Alternator

Optional Extras

M200 EWI Set – consisting of: New bottom coupling and Rotor and Stator  – texture gun or EZE Gun adaptation
