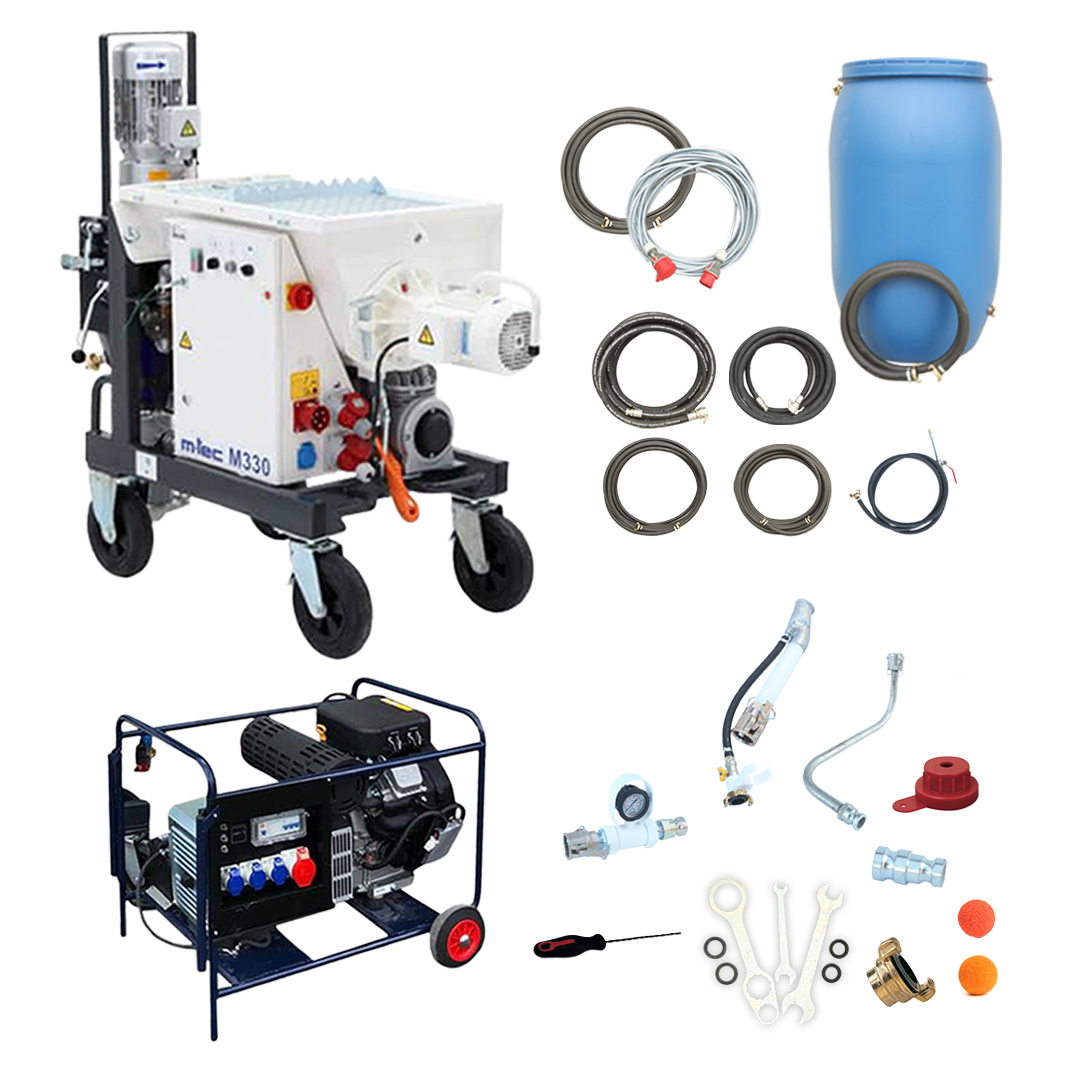

M-tec M330 and EZE Genset

Product Attributes

Description

The M-tec M330 and EZE Genset makes this possible by our single chamber mixing utilising the wet sump principle, which provides a particularly high-quality mix of the materials. In addition this technology guarantees a steady consistency in the mixing chamber, thereby eliminating thick-thin fluctuations. The easy cleaning of the PU components is also a significant advantage. Caked-on material is a thing of the past, substantially increasing the lifetime of the pump and mixing shaft at the same time.

Hands on training provided with all machines purchased.

Technical data

Delivery Volume Standard approx. 24 L/min (depending on worm pump 6-47 L/min)

Pumping Distance* Up to 50 m

Pumping Height* Up to 50 m

Pumping Pressure* Up to 30 Bar

Drive Motors – Dosing 2.2kW, 400V, 50Hz / Mixing Pump: 4.0kW, 400V, 50Hz

Compressed Air Supply 0.9kW, approx. 250 L/min, 4 bar

Water Pump 0.3kW, approx. 40 L/min, 4 bar

Electrical Connection 400V, 50Hz, 3ph

Fuse 25 A

Connecting Cable 5 x 4.0mm.

Connector 32A, 5p, 6h

Water Supply 3/4” water hose with GEKA coupling, required water pressure/min.

2.5 bar while the machine is running

Dimensions Approx. 1650 x  640 x 1470 mm

Weight Approx. 207 kg

Product Code M-tec M330

Areas of Use and Applications

All pump-able dry mortars, such as:

Gypsum Plasters

Lime-gypsum plasters

Cement Plasters

Lime/Lime-cement Plasters

Bricklaying Mortar

Insulating Plasters

Finishing Plasters

Reinforcing mortar & adhesive mortar

Floor Screeds

Adhesives

Cementitious levelling compounds

Our Patented Mixing Principle

The M330 can be used with all standard dry mortar products up to a grain size of 4mm. The technical highlight of the M330 is the way material and water come together in the mixing area: the water is no longer sprayed onto the material as in the past, but instead the material is dosed according to our latest patented mixing principle – it is soaked in water and mixed. The result: the materials are mixed more efficiently and the components take full effect. This all guarantees the top-class application of the materials.
